Konami Machines

Konami have manufactured a few different arcade machines over the years.

Some dedicated like the original Salamander.

Konami Windy
コナミ ウィンディ

GameStone's Windy Logo

Type:
Released:
Dimensions:
Wiring:
Monitor:
Rotatable:
Power:

Weight:
Sitdown
1996
905mm x 750mm x 1399mm (1699mm with Marquee)
JAMMA
29 in 15/24 kHz
Yes
125w
105 kg



Konami Windy Konami Windy Vertical Monitor

2 Player Control Panel

Konami Windy 2 Player Control Panel Scan

The buttons colours are wrong, the Start Button should be Green, the one player Joystick Ball and Buttons should be White, two player Joystick Ball and Buttons are fine.

Konami Windy 2 Player Control Panel

Konami Windy Flyer
コナミ ウィンディ

Konami Windy Flying

Download Konami Windy - 2 Player Control Panel Overlay - PDF - 1.1MB

Download Konami Windy - Manual - PDF - 7.8MB

Konami Windy II
コナミ ウィンディ II

Machine Specifications - 1998

Type:
Released:
Dimensions:
Wiring:
Monitor:
Rotatable:
Power:
Weight:
Sitdown
1997
905mm x 750mm x 1339mm (1699mm with Marquee)
JVS (Includes Konami JAMMA to JVS board)
29 in 15/24/31 kHz (Toshiba PB7534)
Yes
180W
105 kg

Konami updated the original Windy to JVS, change from Pink to Blue.

Konami Windy II Vetical Monitor

1 Player Control Panel

The buttons colours are wrong, the Start Button should be Green, the Joystick Ball and Buttons should be White.

Konami Windy 2 Player Control Panel

Konami Windy II Flyer
コナミ ウィンディ

Konami Windy II Flying

Download Konami Windy II - 2 Player Control Panel Overlay - PDF - 573k

Download Konami Windy II - Manual - PDF - 9.8MB

Windy II Operator's Manual

The above manual is missing the fold out schematic so I scanned it below.

Scanned at 600dpi, Cleaned and Retouched by GameStone.

The file sizes are quite large (2-4MB each), I'll scanned the rest at a later date.

Windy II Operator's Manual 00 Front Windy II Operator's Manual 35 Schematics Windy II Operator's Manual 36 Back

Konami JAMMA to JVS

Joystick Pod Board

This board is situated on the left when you open the joystick pod.

Windy II Konami JVS Joystick Pod Board Top Windy II Konami JVS Joystick Pod Board Bottom

Main JAMMA to JVS Board

Joystick Pod

Joystick Pod

JAMMA to JVS - 1997.11 Rev.1

Scanned at 600dpi, Cleaned and Retouched by GameStone.

The file sizes are quite large (2MB each).

These are the two supplementary sheets that come with the Konami JAMMA to JVS board.

JAMMA to JVS - 1997.11 Rev.1 Page 1 JAMMA to JVS - 1997.11 Rev.1 Page 2

English translation by GameStone 15th April 2012

JAMMA to JVS - 1997.11 Rev.1 Page 1 English Transaltion by GameStone JAMMA to JVS - 1997.11 Rev.1 Page 2

For those who may be interested, here's my translation documents, PWPce Japanese word processor format.

http://www.physics.ucla.edu/~grosenth/jwpce.html - JWPce - Japanese word processor used to read the documents.

Windy Machine JAMMA-JVS Conversion Kit 1 - JCE - 7KB

Windy Machine JAMMA-JVS Conversion Kit 2 - JCE - 5KB

Gradius IV ~Fukkatsu~
グラディウスIV~復活~

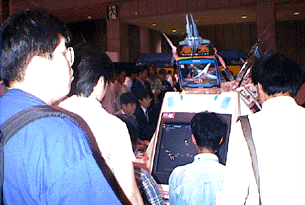

When Konami released Gradius IV ~Fukkatsu~ in the arcade they put it in their own machine, the Windy II.

Windy II Gradius IV ~Fukkatsu~ グラディウスIV~復活~ Windy II Gradius IV ~Fukkatsu~ グラディウスIV~復活~

Unknown Konami Arcade machine

Unknown machine shown from the launch of Gradius IV ~Fukkatsu~.

Windy II Gradius IV ~Fukkatsu~ グラディウスIV~復活~

GameStone's Pixel Art

Salamander

This game had dedicated cabinet.

Salamander

Salamander 32px v1, 32px v2, 128px and Cocktail 128px, I've tried to get the scale of the machine the same as the Windy machines, still got to do the rear views yet.

Salamander 32px v1Salamander 32px v1

GameStone's Salamander Cocktail Version 128pxGameStone's Salamander Cocktail Version 128px v2

Salamander 128pxGameStone's Salamander 128px v2

Otomedius
オトメディウス

After four hours of pixel editing, here's my latest work, Otomedius arcade version.

It's based on the AM show image from Konami website.

I can now add Otomedius to Gradius Corner.

GameStone's Otomedius 128px Konami's Otomedius Collection

Solar Assault Gradius
ソーラーアサルトグラディウス

Four machine were made for this game, three were dedicated and one was a simulation machine.

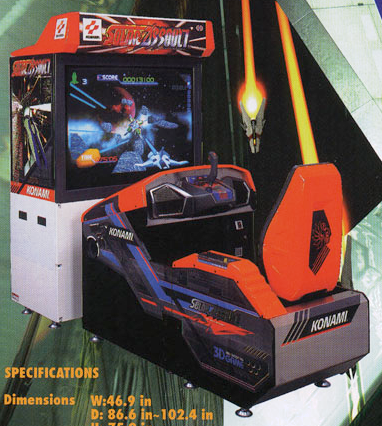

50inch Sit Down

GameStone's Solar Assault 50inchSolar Assault 50inch



29inch Sit Down

GameStone's Solar Assault 29inchSolar Assault 29inch

Konami Windy
コナミ ウィンディ

I started with the 32x32 pixel version for the Arcade Games section on Gradius Home World, I then decided to do a more detailed version.

Doubling the size and re-edited it to add more detail, I've also started a 256x256 version but it's taking a very long time to add the needed detail and much more detail in needed due to the extra pixels.

32px, 64px v1, 64px v2, 64px v3, 64px v3 Top, 128px, 128px v2.

Windy 32 Windy 64 v2 Windy 64 v1 Windy 64 v2 Windy 64 v3 Windy 128px Windy 128px v2

All images have been resized to make them the same size as the 128px version, otherwise they look like the two images below.

Windy 32Windy 128px v2

Konami Windy - 128px
コナミ ウィンディ

Front View, Rear View, One Player, Two Player Six Buttons (Three Plugged), Two Player Three Buttons, Horizontal and Vertical monitor layout versions.

Windy 128px

Konami Windy II - 128px
コナミ ウィンディ II

Front View, Rear View, One Player, Two Player, Horizontal and Vertical monitor layout versions.

Windy II 128px
