Lenses.

Zuiko 35mm Macro Lens.

Zuiko 17.5-45mm Zoom Lens.

Zuiko 18-180mm Zoom Lens.

Zuiko 40-150mm Zoom Lens.

Miranda 35-135mm Zoom Macro Lens.

Miranda 50mm Fixed Lens.

Miranda 75-300mm Zoom Lens.

Crystal Vision Adaptor Lens.

---

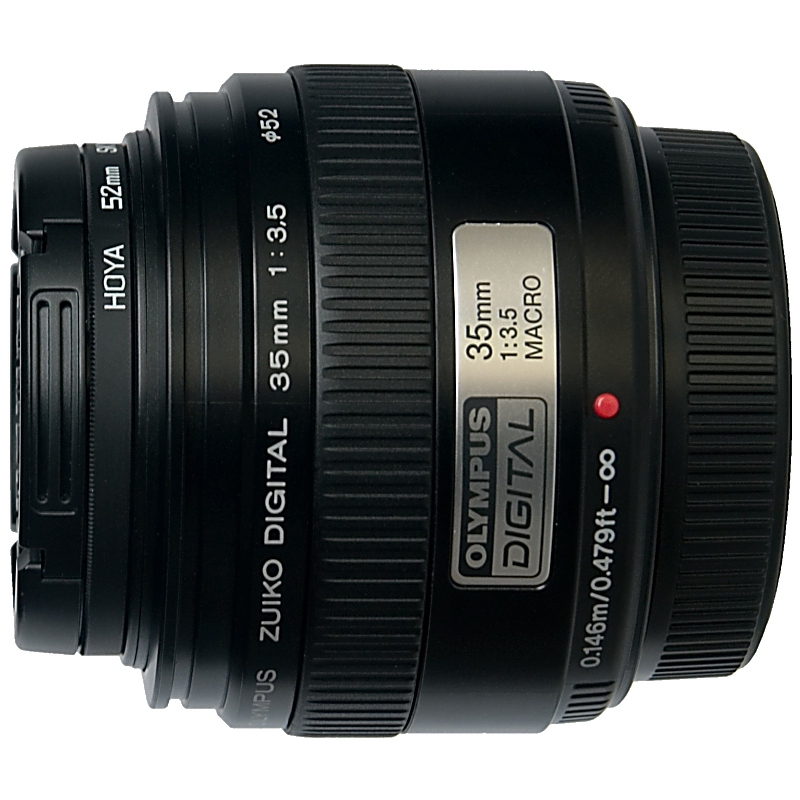

Zuiko 35mm Macro Lens: (Purchase price around £135).

The Zuiko Digital 35mm 1:3.5 Macro lens offers an equivalent range of 70mm that would be found on a standard 35mm film camera. This macro lens was designed to be used with the Macro flash system which has two flash units available, the FS-RF11 ring flash and the TF-22 twin flash both of which fit to the lens and are controlled by the FS-FC1 macro flash unit which fits to the camera hot shoe. The lens is also just as good in normal use and is a very compact light lens. It has a magnification factor of 1:1 representing life size images equivalent to 2:1 on a standard 35mm film camera. Specifications: Focal length: 35mm. (35mm focal length equivalent to 70mm). Lenses: 6 elements in 6 groups. Angle of view: 34 degrees. Closest focusing distance: 0.146 meters. Maximum aperture: 1:3.5. Minimum aperture: 1:22. Filter size: 52mm. Dimensions: 71mm (Depth) x 53mm (Length). Weight: 165g. Fit type: Olympus Four Thirds.

---

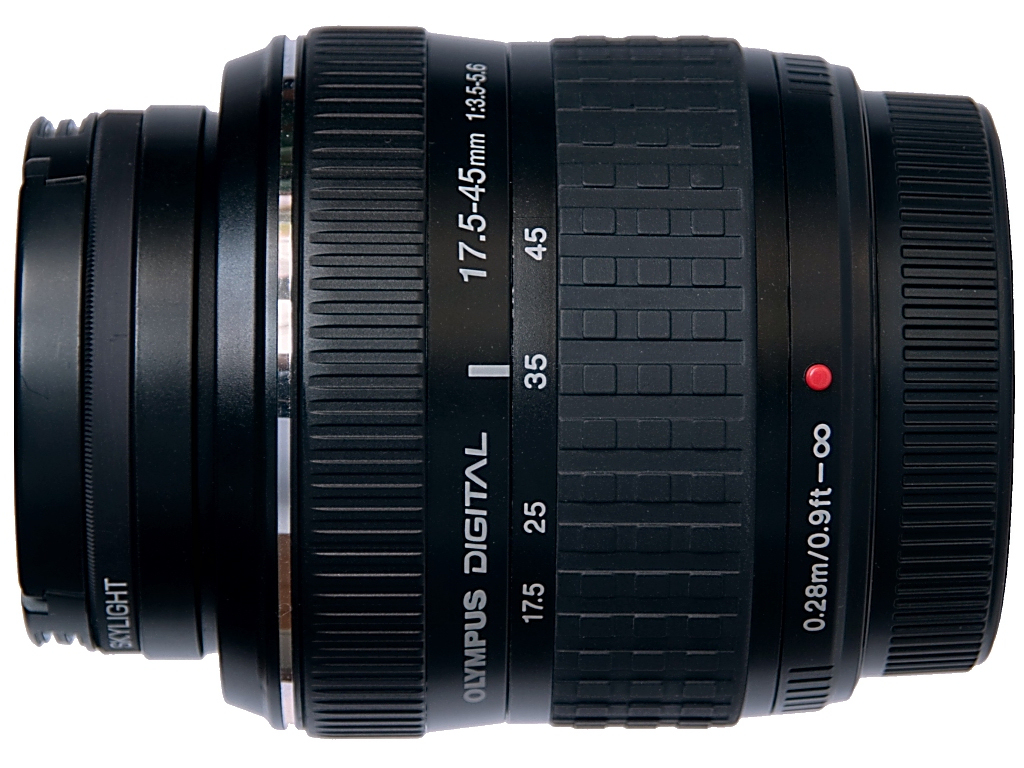

Zuiko 17.5-45mm Zoom Lens: Part of the Olympus E-500 SE kit. (Not available for individual purchase).

The Zuiko Digital 17.5mm to 45mm 1:3.5 to 5.6 Zoom lens offers an equivalent range of 35mm to 90mm that would be found on a standard 35mm film camera. This standard zoom lens is compact and lightweight and has a range from medium wide angle to portrait Telephoto with a magnification factor of 2.6x which makes it quite a versatile lens. The close focusing distance of 0.28 Meters throughout the zoom range is also a feature ideal for close up images. This lens only comes as a part of the Olympus E-500 SE Kit and is not available for purchase as an individual item. Specifications: Focal length: 17.5-45mm. (35mm focal length equivalent to 35-90mm). Lenses: 7 elements in 7 groups, includes 2 aspherical lens elements. Angle of view: 63 to 27 degrees. Closest focusing distance: 0.28m. Maximum aperture: 1:3.5 (at 17.5mm) : 1:5.6 (at 45mm). Minimum aperture: 1:22. Filter size: 52mm. Dimensions: 71mm (Depth) x 70mm (Length). Weight: 210g. Fit type: Olympus Four Thirds.

---

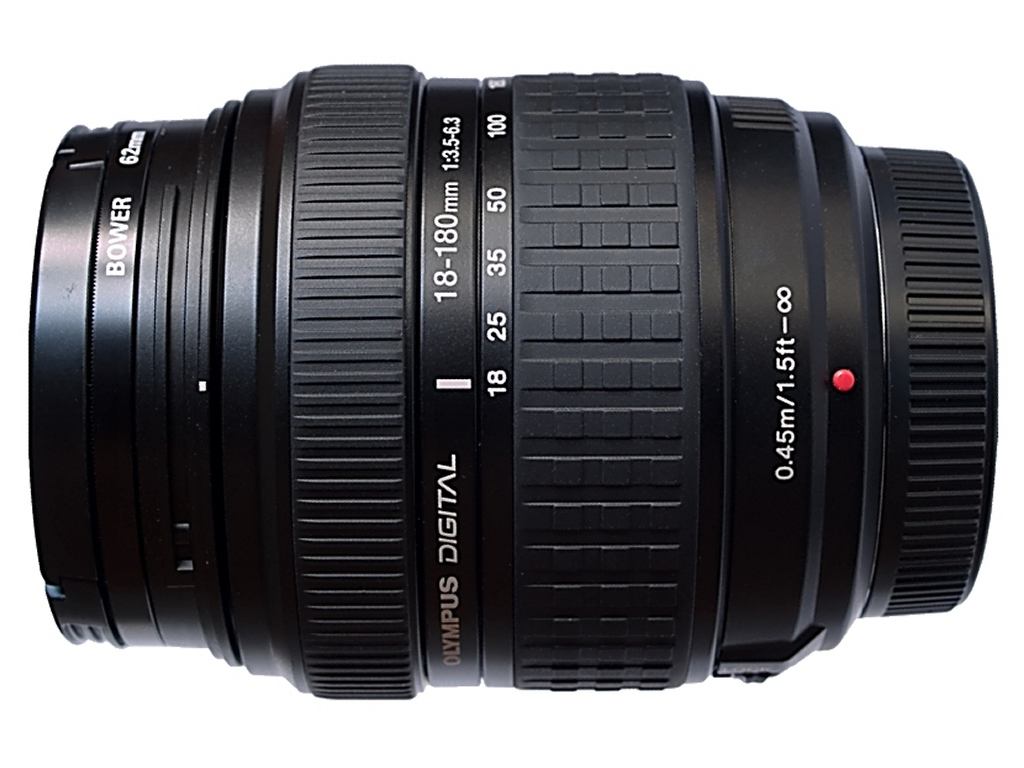

Zuiko 18-180mm Zoom Lens: (Purchase price around £300).

The Zuiko Digital 18mm to 180mm 1:3.5 to 6.3 Zoom lens offers an equivalent range of 36mm to 360mm that would be found on a standard 35mm film camera. This zoom lens is great for wide angle and telephoto image shooting thanks to its 10x zoom factor which enables the lens to cover quite a range which is especially good for a lens that is very compact. The minimum focusing distance of 0.45 Meters is also fairly good for moderately close up image photograpy. This an ideal general across the range lens if you dont plan on swapping between lenses when out in the field. Specifications: Focal length: 18-180mm. (35mm focal length equivalent to 36-360mm). Lenses: 15 elements in 13 groups, includes 2 aspherical lens elements. Angle of view: 62 to 6.9 degrees. Closest focusing distance: 0.45m. Maximum aperture: 1:3.5 (at 18mm) : 1:6.3 (at 180mm). Minimum aperture: 1:22. Filter size: 62mm. Dimensions: 78mm (Depth) x 84.5mm (Length). Weight: 435g. Fit type: Olympus Four Thirds.

---

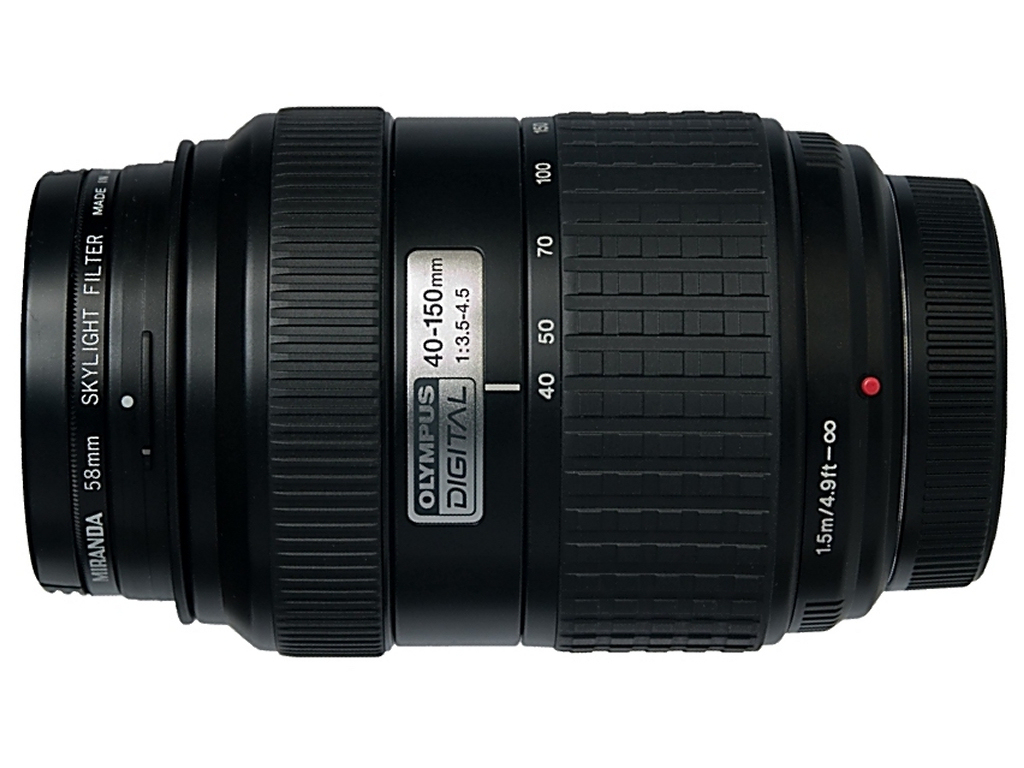

Zuiko 40-150mm Zoom Lens: Part of the Olympus E-500 SE kit. (Individual purchase price around £140).

The Zuiko Digital 40mm to 150mm 1:3.5 to 4.5 Zoom lens offers an equivalent range of 80mm to 300mm that would be found on a standard 35mm film camera. This zoom lens has a magnification factor of 3.8x telephoto zoom and is ideal for sport and portrait images.It is also an ideal supplement to the Zuiko 17.5-45mm lens. . The lens boasts special multicoating to minimise ghost flare and is a compact, lightweight and reasonably priced telephoto zoom lens. It has a maximum image magnification factor of 0.12 representing an equivalent to 0.24 on a standard 35mm film camera. Specifications: Focal length: 40-150mm. (35mm focal length equivalent to 80-300mm). Lenses: 13 elements in 10 groups. Angle of view: 30 to 8.2 degrees. Closest focusing distance: 1.5 meters. Maximum aperture: 1:3.5 (at 40mm) : 1:4.5 (at 150mm). Minimum aperture: 1:22. Filter size: 58mm. Dimensions: 77mm (Depth) x 107mm (Length). Weight: 425g. Fit type: Olympus Four Thirds.

---

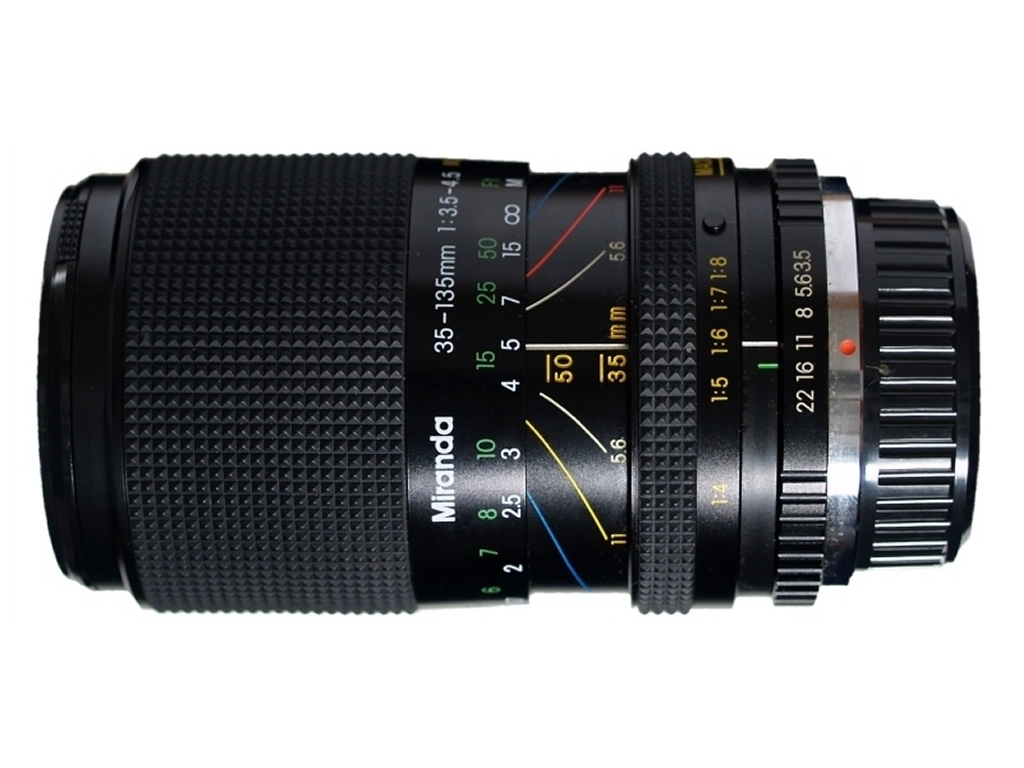

Miranda 35-135 Macro Zoom Lens: (Purchase price around £95).

The Miranda 35 to 135mm Macro zoom lens is a non digital SLR lens that fits on to a normal 35mm SLR film camera. This lens is ideally suited for general and portrait photography and houses a macro ring with a maximum factor of 1:4 to enhance close up work across the whole zoom range making it a very versatile lens. Specifications: Focal length: 35-135mm. (35mm SLR camera lens). Lenses: Unknown. Angle of view: 47 to 15 degrees. Closest focusing distance: 1.68 meters. Maximum aperture: 1:3.5. Minimum aperture: 1:22. Filter size: 58mm. Dimensions: 66mm (Depth) x 90mm (Length). Weight: 530g. Fit type: Pentax K Mount.

---

Miranda 50mm Fixed Lens: (Purchased with camera).

The Miranda 35mm 1:1.9 Fixed lens is a non digital SLR lens that fits on to a normal 35mm SLR film camera. Specifications: Focal length: 50mm fixed (35mm SLR camera lens). Lenses: Unknown. Angle of view: 35 degrees. Closest focusing distance: 0.48 meters. Maximum aperture: 1:1.9. Minimum aperture: 1:16. Filter size: 49mm. Dimensions: 63mm (Depth) x 34mm (Length). Weight: 120g. Fit type: Pentax K Mount.

---

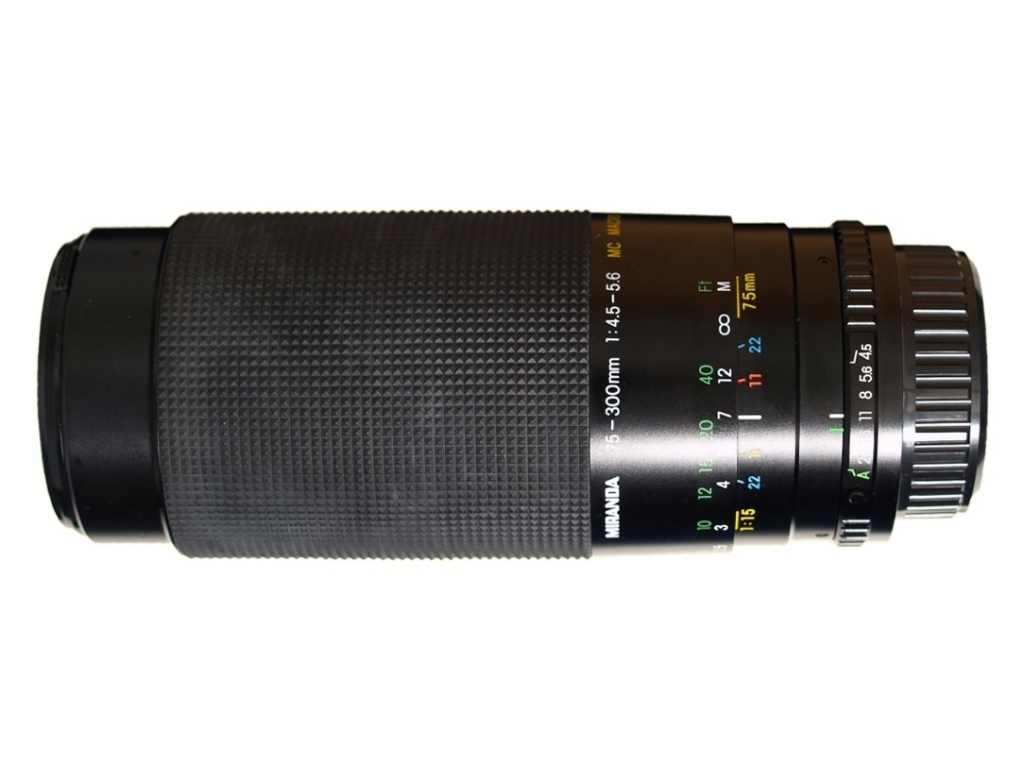

Miranda 75-300mm Zoom Lens: (Purchase price unknown).

The Miranda 75 to 300mm Zoom lens is a non digital SLR lens that fits on to a normal 35mm SLR film camera. Specifications: Focal length: 75-300mm. (35mm SLR camera lens). Lenses: Unknown. Angle of view: 19 to 6 degrees. Closest focusing distance: 1.46 meters. Maximum aperture: 1:4.5 (at 75mm) : 1:5.6 (at 300mm). Minimum aperture: 1:22. Filter size: 58mm. Dimensions: 68mm (Depth) x 152mm (Length). Weight: 675g. Fit type: Pentax K Mount.

---

Crystal Vision Adaptor Lens: (Purchase price around £165).

The Crystal Vision High Definition 62mm 0.5x Pro Wide Lens comes with a lens cap, bottom cover and a carry pouch included in the two part lens kit and is designed to specifically fit a DSLR lens. The lens combination screws on to an existing 62mm thread fit DSLR lens which halves the applied lens focal length giving an effective wider view accross the range of the applied lens with no distortion. The two lens elements can also be split and then the smaller lens element can be used as a close up lens on its own producing a magnification of 4x. Specifications: Focal length: 50% of normal applied lens using both elements. Lenses: 2 element combination with single element use available. Angle of view: Varies depending on applied lens. Closest focusing distance: 25% of normal applied lens using close up element. Maximum aperture: That of applied lens. Minimum aperture: That of applied lens. Filter size: 62mm (close up element). 82mm (wide angle element). Dimensions: 86mm (Depth) x 34mm (Length) both elements. Weight: 250g. Fit type: 62mm screw thread.
